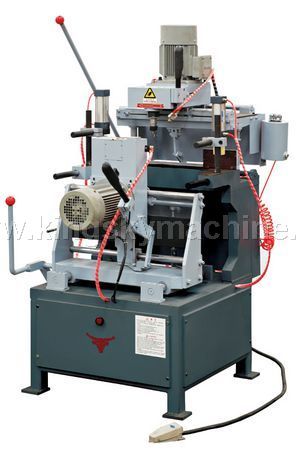

Double-Axis Copy Router



1. It mainly used for milling different through holes for aluminum alloy materials of curtain walls and windows as per hole mould in 1:1 ratio.

2. The material is secured on a scaled frame by pneumatic

3. The duplicating mill heads adopts imported linear motion bearings and is kept in position by two round guides. This enables the machine to be operated by hand with high processing precision.

4. Clamps. Section holes in the orthogonal faces of section materials can be processed in one cycle.



Main Technique Parameter:

Model and parameter	Double Axis Copy Router KS-X155
Vertical copying range	110×280mm
Horizontal copying range	120×260mm
Diameter of milling cutter	Ф6、Ф8
Input power	2.25KW
Power supply	380V　50HZ
Operating air pressure	0.6 – 0.8 Mpa
Air consumption	30L/min
Spindle rotating speed	12000 r/min
External dimensions	1020mm(L)×810mm(W) ×1500mm(H)
Weight	250Kg
