Developed by German Mature structure, it’s suitable for milling tenons for different kinds of profiles; it mills the tenons from two ends of materials simultaneously. And it’s driven by imported linear guide to assure the stable, precise and high efficient processing.

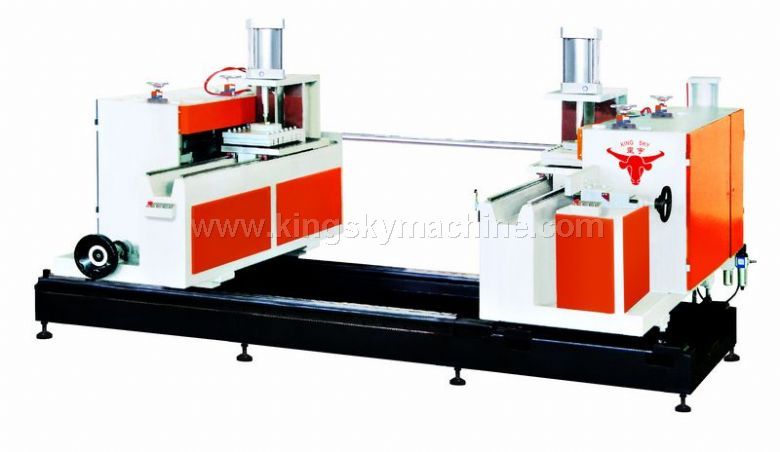

Model and parameters	KS-2X611 Double Head Six-cutter Curtain Wall End Milling Machine
Control system	South Korea LG
Processing range	550~1600mm
Precision	≤0.05mm
Profile Qty. of one-time cutting	6~8 pieces
Milling Range(W×H)	80×80mm
Power of motor	4×2.2kw
Blade Size	φ200×φ27×100T
Dimension（L×W×H）	3000×2200×1600mm
