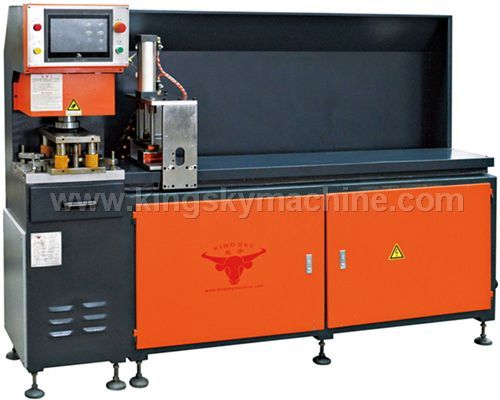

KS-J8S2120-High-precision CNC Auto-feeding Hydraulic Punching Machine

KS-J8S2120-High-precision CNC Auto-feeding Hydraulic Punching Machine



This high-precision CNC Auto-feeding hydraulic punching machine is suitable for punching different kinds of industrial aluminum profiles. It is driven by high-accurate screw balls and imported linear guiding rail, and the auto-feeding function is realized by Japanese imported Servo motor.
This machine perfectly combines traditional punching technic and CNC Auto-Feeding control technology together, it can finish equal length or different length punching for different doors and window profiles, roofing profiles and industrial profiles by CNC auto-feeding function and special designed moulds, it has features of high automation and efficiency. The reposition accuracy is ±0.05mm.
The main parts are casted with seamless connection technic,so it has high intension and precision and good stability. With imported computer integrated program (PLC)  control, it can realize automatic detection, diagnosis, remote maintenance and upgrading functions, high circuit stability, wide applicability of operating environment; clear interface, simple operation. The overall indicator has reached the international first class.
TECHNICAL PARAMETER
Model
KS-J8S2120
High-precision CNC Auto-feeding Hydraulic Punching Machine
Max. punching width
230mm
Length of one-time feeding
5-1200mm
Feeding and cutting mode
CNC Servo feeding
Automatic feeding mode
Can set to get repeated equal length or different length feeding
Repositioning Accuracy
±0.1mm
Number of punching positions
1pcs
Maximum closed height
210mm
Minimum closed height
175mm
Maximum punching stroke
45mm
Diameter of oil cylinder
80mm
oil tank Capacity
35L
Power of electric motor
2.2kW
Maximum punching shear force
8000kg
Working Voltage
380VAC/50Hz
5500x550x1600mm
Machine Weight
1500kg
