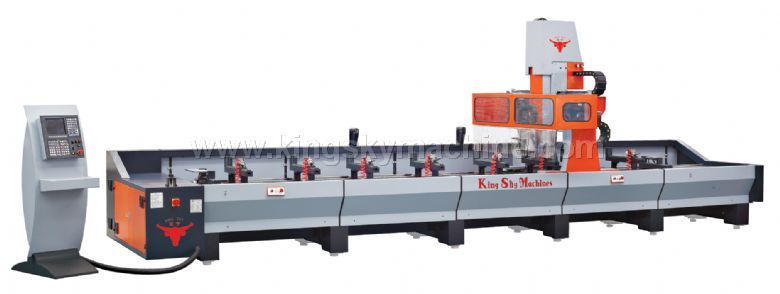

The machining center includes 3-axis and 4 axis types, and is exclusively researched and developed by our company,adopts Italian classic structure of profile machining center and German CNC profile processing technology. With CNC control three-axis linkage and two-axis separate interpolation,it can realize orderly machining on aluminum alloy profile, lightweight alloys, iron and UPVC profile.

With spindle rotation or by adding C-axis rotary worktable, it can realize 0°~180° rotation and 3 sides machining. The tool magazine is equipped with 8 +1 tool positions and it can automatically change tools as per programme.



Model and standard parameter	KST-5306/08/12	KST-58S406/08/12	KST-58S506/08/12
CNC axis/processing surface	CNC 3 axis, 1 surface	CNC 4 axis, 3 surface	CNC 5 axis, 5 surface
Type of tool magazine(optional)	Pen/disc tool magazine	Disc/implict pushpull tool magazine	Disc/implict pushpull tool magazine
Maximum machining length	6000/8000/12000mm	6000/8000/12000mm	6000/8000/12000mm
Maximum machining width:	500mm
Maximum machining height:	300mm/500mm
Work area	6000/8000mm double work areas,12000mm three work areas
Positioning accuracy	0.05mm/m
Power of spindle:	7.5KW
Tool shank:	ISO 30
Speed RPM	18000rpm
Tool magazine capacity:	（8+1）9 tool
Tool change time:	5/10s
X-axis speed and drive mode:	80m/min, German Dual gear rack and pinion,linear guide
Y-axis speed and drive mode:	40m/min, Japan- ball bearing screw and linear guide
Z-axis speed and drive mode:	30m/min, Japan- ball bearing screw and linear guide
Repositioning accuracy	0.1mm
Spindle and tool changing system	Air cooling/pneumatic
Operating software:	WINDOWS XP, GERMAN KINGSKY profile professional software ( read PLT or DXF to achieve processing automatically)
Security and protective devices	Photoelectric protection, assembled with sound-absorbing protective panel in operation
Environment-friendly and humanizing device	Electric recycling transmission belt for milling scrap
Dimension (L × W × H)	7900/9900/13900 X2600 X1900mm
Optional functions and devices
Installation of C-axis:	Stardard length of C-axis :4000mm
	Swing range: ± 90°, the minimum setting angle: 0.01°，, accuracy ± 0.01°
Installation of tool magazine/Angle Milling Head	8 movable blades/can cut off or 5 sides machining profiles.
Tool detection	Automatic measurement of tool length/ automatic tool sensor
Clamping work platform	6 set/8 set/12 set
Tool accessories	ISO30 tool bit/ Clamps / Tool
Bar code scanners and supporting software	For mass production, it'll automatically reading profile data and automatically implement the same machining procedure
Others	Electric recycling transmission belt
