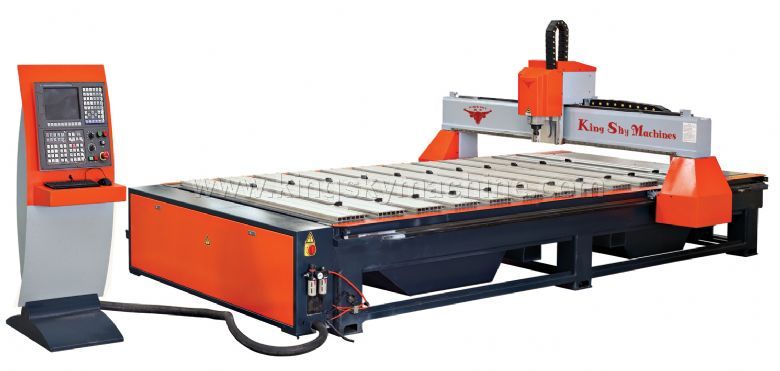

The machine adopts mature structural design of German Machining Center, controlled by CNC three-axis linkage interpolation, realizing orderly machining of engraving, milling, cutting, grooving for the non-ferrous metal plates, chemical composite plates, wood plates, and artificial stone aluminum plates.

The worktable is equipped with convenient vacuum pump system, all the moving parts are lubricated by interval supply system and tools are cooled by cooling spray system to prolong the lifespan and improve the fineness of the workpieces;this machine is produced by one-time machining center after annealing treatment, adopts box-structure lathe bed and gantry structure girder ,as well as original imported west German ball screw, linear guide, pinion and rack and Italian "HSD" air-cooled spindle to ensure its stability, precision and efficiency.

The machine is of powerful expansibility:

we also provide professionally-designed profile clamping devices, which can complete the milling and machining of various types of profile.

Installation of automatic tool change and tool magazine system, i.e. four-axis and five-axis machining center.



Model and standard parameter	KSB-22D / KSB-22	KSB-32D / KSB-32	KSB-42D / KSB-42
Maximum machining area	1270×2540 mm	1500×3000 mm	2000×4000 mm
Height from cross beam to workbench	200 (mm)	200 (mm)	200 (mm)
X-axis speed:	60m/min
Y-axis speed	40m/min
Z-axis speed	30m/min
Repositioning accuracy:	0.1mm
Spindle:	Air cooling 6KW HSD
Rotating speed of spindle:	24000rpm
Tool shank:	ISO 30
X-axis drive mode	Japan Servo Motor, German Dual gear rack and pinion , linear guide
Y / Z axis drive mode:	Japan Servo Motor, ball bearing screw , linear guide
CNC System:	GERMAN KINGSKY
Material clamping and pressing devices	1set
Dimension (L × W × H)	3500×2280×1800mm	3850×2560×1800	5000×3900×1800mm
Optional functions and devices
Installation of fourth / fifth-axis:	Installation of 3 +1 linkage along X-axis / installation of forth-axis interpolation linkage in the machine head
Installation of rotary C-axis:	The workpiece can realize machining of three sides for one-time clamping, -90 degrees to 90 degrees, the minimum setting angle: 0.5 degree, accuracy ± 0.1 degree
Tool change system and tool magazine	Installation of tool change function (time of tool change: 5~10s) Tool magazine capacity: 6
Operating system	Delta(Taiwan)/Mitsubishi(Japan)/KINGSKY (professional software for German profile, 18 module packages, WIN XP)
Environment-friendly, safe and protective devices, humanizing devices	Photoelectric protection in operation, Laser safety light curtain (divided into double work areas), milling scrap recovery system
Tool detection	Automatic measurement of tool length/ automatic tool sensor
Installation of vacuum adsorption	Vacuum adsorption workbench and vacuum pump
Tool accessories	ISO30 tool bit/ Clamps / Tool/suction device
Bar code scanners and supporting software	For mass production, the profile data are automatically read, automatically implement the same machining procedure
