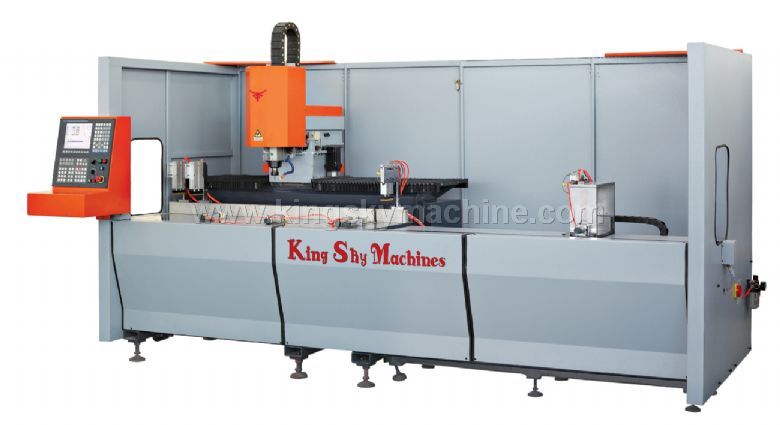

KS-XJ1533-CNC 4-Axis Drilling Milling and Sawing Machining Center

KS-XJ1533-CNC 4-Axis Drilling Milling and Sawing Machining Center

  View Video


The machine is solely developed by our company with patented technology, it has inimitable good performance and work efficiency compared with other equivalent machines in the markets: the CNC software developed by our company can not only complete operation of cutting, auto-feeding, three-axis CNC milling separately, but also can combine the three functions freely to complete all the functions of auto feeding single head saw and three-axis CNC profile machining machines; With automatic line production, it can complete functions of auto feeding,cutting,CNC milling and drilling at the same time orderly, and the efficiency is very high.

Since it release to the market, this machine has been widely used for the international enterprises in the industries of heat sink, solar energy, motor shell, aluminum and copper accessories and wins very good appraisal. It is the ideal machining equipments for enterprises of doors and windows hardware accessories, building accessories, gate control hardware accessories, home hardware fittings, industrial fittings and other complicated accessories.

This machine adopts the design concept of mature Italian three-axis CNC machine tool. The whole machine body is manufactured by machining center after annealing treatment. The three-axis linkage and one-axis feeding interpolation can realize an orderly machining of engraving, milling, cutting, slotting of any length of metal profile. Equipped with German hard alloy saw blades, imported guide rail, lead screw; and installed with hydropneumatic damper stepless speed regulation, automatic oil spray (mist) lubrication cooling device, this machine is firm and durable with precise positioning, operational sensitivity and superior stability. With the control software jointly developed with international famous enterprises, it can realize automatic detection, diagnosis, remote maintenance, upgrading functions, and it has wide applicability of operating environment with circuit stability; clear interface, simple operation, high production efficiency and low labor intensity (one person can take charge of 2-3 sets); high degree of automation (skilled operation after general training). The installed scrap suction device is environment-friendly and healthy.

TECHNICAL PARAMETER
Model and Parameter
KS-XJ1533
Length of one-time feeding
1000 mm
Three-axis working travel
X: 1000  Y: 250  Z: 200
Cutting width X cutting height
215×150 mm
Feeding motor power
4×750W
Spindle Power/rotating speed
Italy 3-6 kW /24000rpm
Cutting motor power / speed
2.2kW /2840 rpm
Fourth axis feeding speed
10-30m/min
Cutting blade feeding speed
Feeding 0-3m/min   Returning 2-3m/min
Repositioning accuracy
±0.05mm
 Precision of cutting length
±0.1m
Roughness of cutting surface
Ra12.5mm
Specification of toolholder / milling tool
ISO30
Specification of tool
Ф500×Ф30×120T
Operating software:
professional software for GERMAN KINGSKY profile, professional module packages (18types)
Tool detection
Automatic measurement of tool length/ automatic tool sensor
Working air pressure / working voltage
0.6-0.8Mpa/380V 50HZ
Dimension (L × W × H)
6760×2000×2300 mm
Optional functions and devices
Tool magazine
Time of tool change: 5~10s   Capacity of tool magazine: 6
Device/Tool
Dust collector /spare blades
Machine weight
2000kg
