KS-J8S171Z/J8S117X-CNC Auto-Feeding Drilling and Sawing Machine

KS-J8S171Z/J8S117X-CNC Auto-Feeding Drilling and Sawing Machine

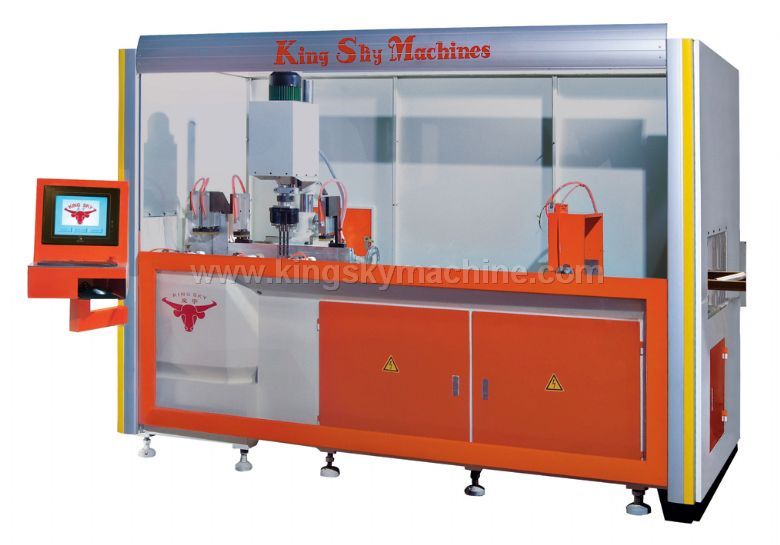

The machine is exclusively researched and developed by our company with patented technology by adopting the internationally advanced mechanical technology and concept, in combination with our company’s professional development results. Through sawing, automatic feeding, drilling three-axis digital control, an automated assembly-line method is adopted to realize orderly machining of multiple drilling and cutting of any length of metal profile for many times. This machine is particularly applicable to the machining enterprises engaged in industrial aluminum fittings, aluminum curtain wall accessories, doors and windows hardware fittings, building hardware fittings, door-control hardware accessories and home hardware accessories, and is the latest equipment for one-time completion of drilling, counter boring, cutting and other complex machining processes for a single workpiece for many times.

The whole machine body is manufactured for one-time in the machining center after annealing treatment. Equipped with German hard alloy saw blades, imported guide rail, lead screw; and installed with hydropneumatic damper stepless speed regulation, automatic oil spray (mist) lubrication cooling device, this machine is firm and durable with precise positioning, operational sensitivity and superior stability. With the control software jointly developed with international famous enterprises, it can realize automatic detection, diagnosis, remote maintenance, upgrading functions, circuit stability, wide applicability of operating environments; clear interface, simple operation, high production efficiency and low labor intensity (one person can take charge of 2-3 sets); high degree of automation (skilled operation after general training). The installed scrap suction device is environment-friendly and healthy.

This machine can be installed with multiple drilling heads as required by the clients. Through program control, it can realize batch or orderly drilling of any work position of the workpieces.

TECHNICAL PARAMETER
Model and Parameter
KS-J8S117Z
   KS-J8S117X
KS-J8S171Z

KS-J8S171X

Cutting angle
Any angle between ±22.5°double ends
90°double ends,45°single end
Optimized material cutting function
One time or many times auto feeding in same or different length as per programme
Drilling /tapping head
Drilling head
Driling/tapping head
Drilling head
Driling/tapping head
Multiple shaft drilling device(3-axis adjustable)
1 original Taiwan made porous device
Length of one-time automatic feeding
5~1200mm/ ±0.05mm
Precision of cutting length
±0.1mm
Feeding Motor Power and Speed
750W/1-30m/min
Drilling head power / speed
Taiwan 1.5kW/2800 rpm
Cutting motor power / speed
2.2kW /2840 rpm
Cutting angle/speed
Feeding 0-3m/min   Returning 2-3m/min
Repositioning accuracy
±0.02mm/m
Maximum travel of driving head
100-150mm
Cutting width x cutting height
230x150mm
Specification of driller
ISO16 Ф3-15
Specification of blade
Ф500×Ф30×120T
Minimum distance of single group of holes (porous device)
13.5~22mm
Drilling diameter
Ф3-Ф15mm
Working air pressure / working power
0.6-0.8MPa/380V Three-phase 50Hz
Dimension (L × W × H)
5800×2000×1500 mm /2800×1280×2000 mm
Optional functions and devices
Driling/tapping function
By adding many different drilling heads, it can realize drill or tap single or multi holes
Multiple shaft drilling device
Can be customized from Taiwan factory
Spare tools:Customized forming drill bits, German saw blades.
Dust collector
Installation of security light curtain
