It's mainly used for cutting aluminum alloy profile of doors and windows, profile of curtain walls, and PVC; automatic oil spray lubrication cooling device, it can realize good surface finish and high precision; hydrau-pneumatic damper stepless speed regulation is adopted for stable feeding of saw blade.

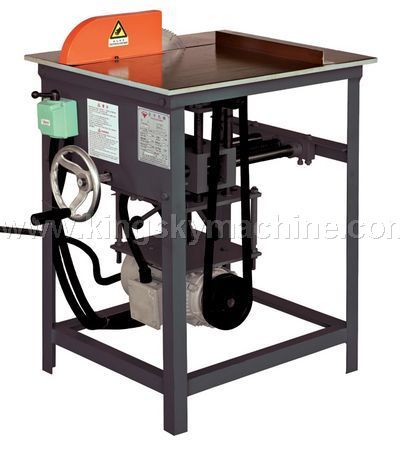

Models and parameters	KS-J101 manual saw
Feeding mode/speed of saw blade	Manually Rotate
Material-pressing device	Manual control
Standard material bracket and configuration bracket	No
Rotating speed of main motor	2840r/min
Power of main motor	1.5kW
Blade size	Ф300×Ф25.4×80T
Working air pressure /working voltage	No
Power supply	Standard configuration: three-phase 380V 50HZ, The non-standard can be customized
Dimension (L × W × H)	600x860x980mm
Machine weight	150Kg
Cutting rangle	90 x 140mm
Optional device	Clamps, positioning templates, configuration bracket, spare tools, Digital display configuration bracket.
