It's mainly used for cutting aluminum alloy profile of doors and windows, profile of curtain walls, and PVC; automatic oil spray lubrication cooling device, it can realize good surface finish and high precision; hydrau-pneumatic damper stepless speed regulation is adopted for stable feeding of saw blade.

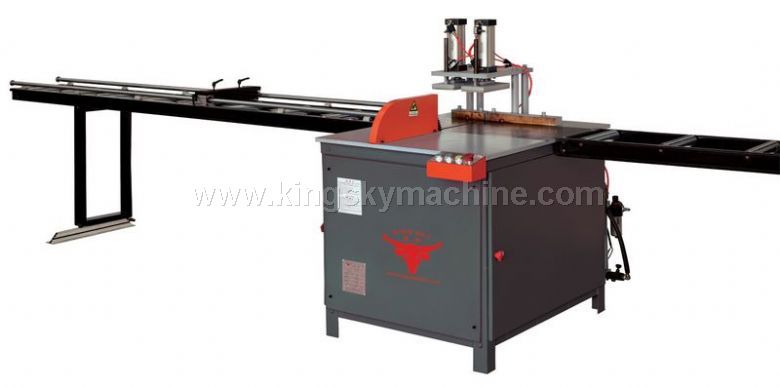

Models and parameters	KS-J112 large pneumatic sawing machine
Feeding mode/speed of saw blade	Pneumatic 0-3m/min
Material-pressing device	Automatic Material Pressing by Cylinder
Standard material bracket and configuration bracket	2000mm/ 3000mm
Rotating speed of main motor	2840r/min
Power of main motor	2.2kW
Blade size	Ф450×Ф30×120T
Working air pressure /working voltage	0.6-0.8MPa
Power supply	Standard configuration: three-phase 380V 50HZ, The non-standard can be customized
Dimension (L × W × H)	6860x1720×1400 mm
Machine weight	500kg
Cutting range	140×370mm
Optional device	Clamps, positioning templates, configuration bracket, spare tools, Digital display configuration bracket.
